1、部署以太坊测试环境

这是一系列“关于如何在私有环境中发布NFT”文章中的第一篇，我希望通过这些文章揭开NFT的面纱，让大家可以在私有环境学习如何发布的NFT。还可以通过这些文章认识智能合约，并在开始学习编写智能合约的时候，知道如何搭建环境来开发、测试和部署自己的智能合约。

关于开发测试环境我使用在Microsoft Azure公有云中部署的Quorum Developer Quickstart虚拟机。它基于GoQuorum Docker镜像来运行一个由Docker Compose管理的GoQuorum节点的私有IBFT(Istanbul Byzantine Fault Tolerant)网络。GoQuorum是一个私有的、基于Ethereum协议的官方Go实现的区块链

除了虚拟机之外，我还会使用一个网关来做为整个环境的入口，因为最终我们会将发布的NFT添加到电子钱包(MetaMask)中，这样我们需要一个公网地址和域名，以及一张证书。但最重要的是我们需要保护虚拟机不被攻击，所以我又添加了API Management和Application Gateway两个云服务。以下就是整个环境的拓扑图

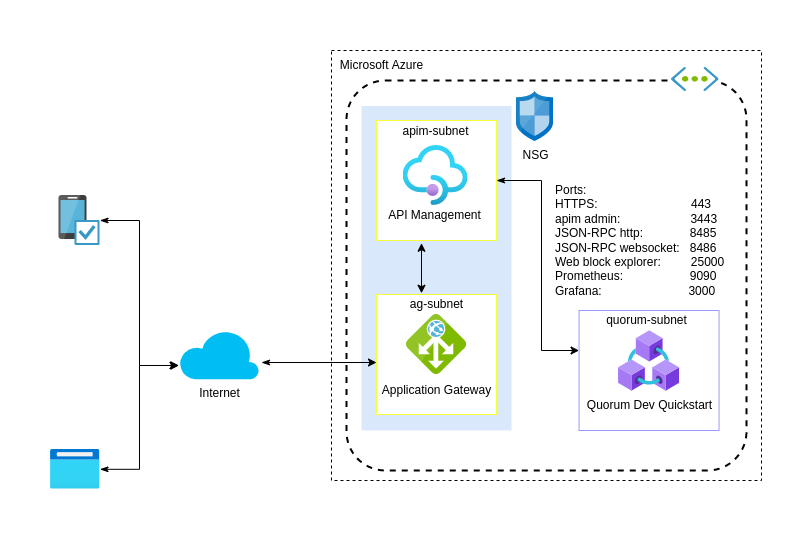

架构拓扑图

Untitled Diagram.drawio.png

在Azure中部署以太坊测试环境

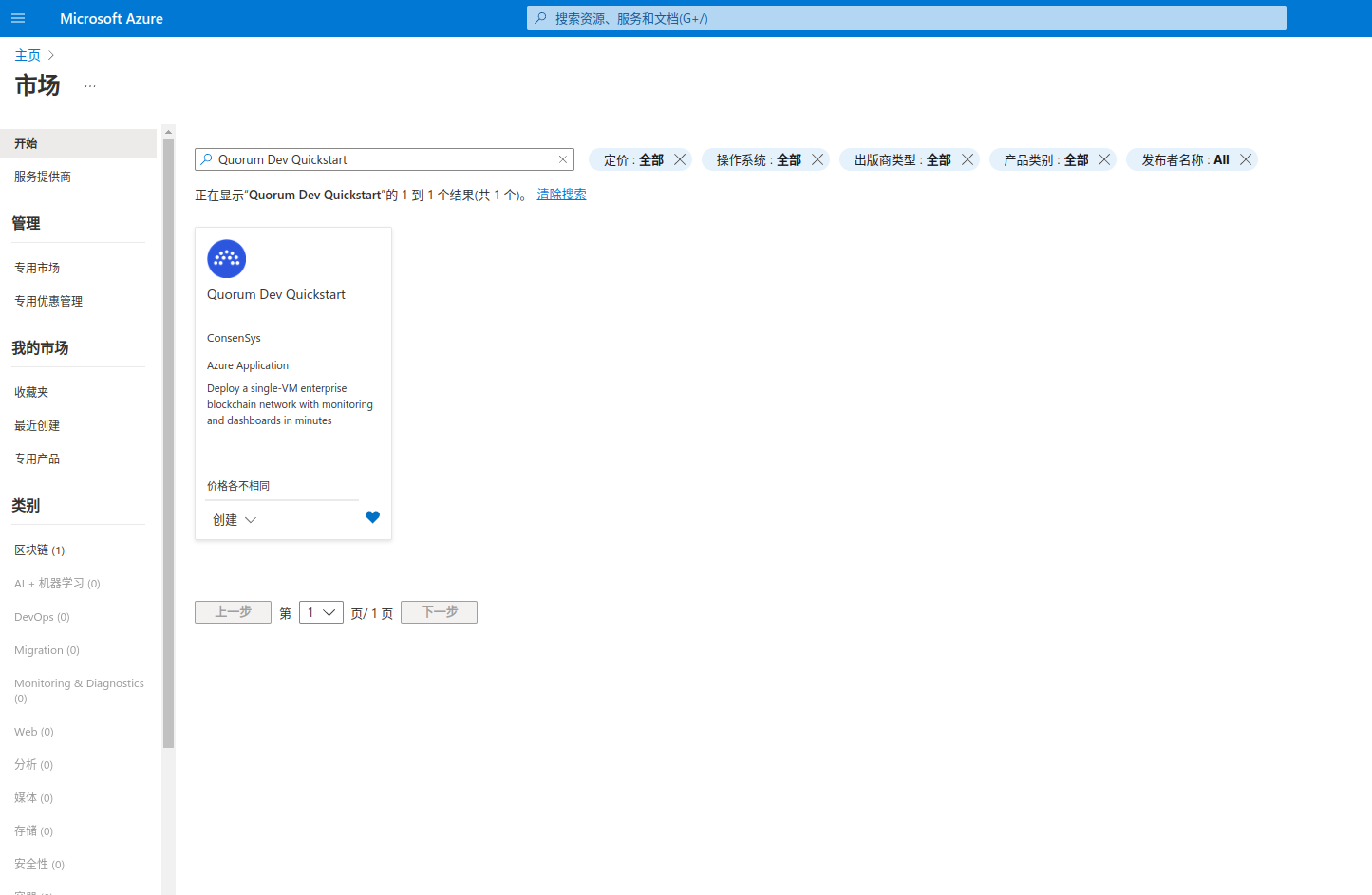

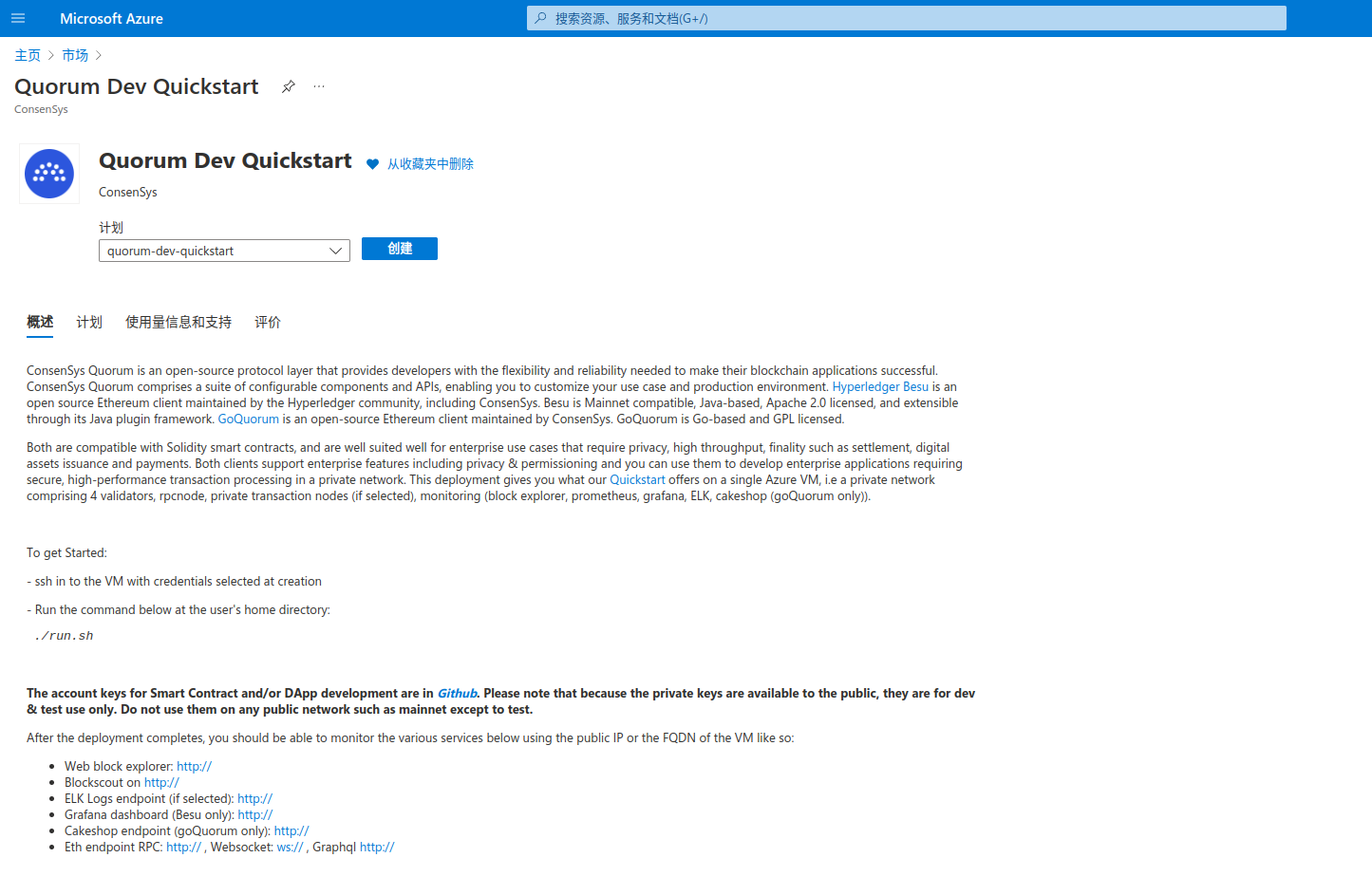

首先我们需要一个Azure订阅，可以在Azure官网申请免费账户，在Azure市场中搜索Quorum Dev Quickstart

Untitled

选择创建

Untitled

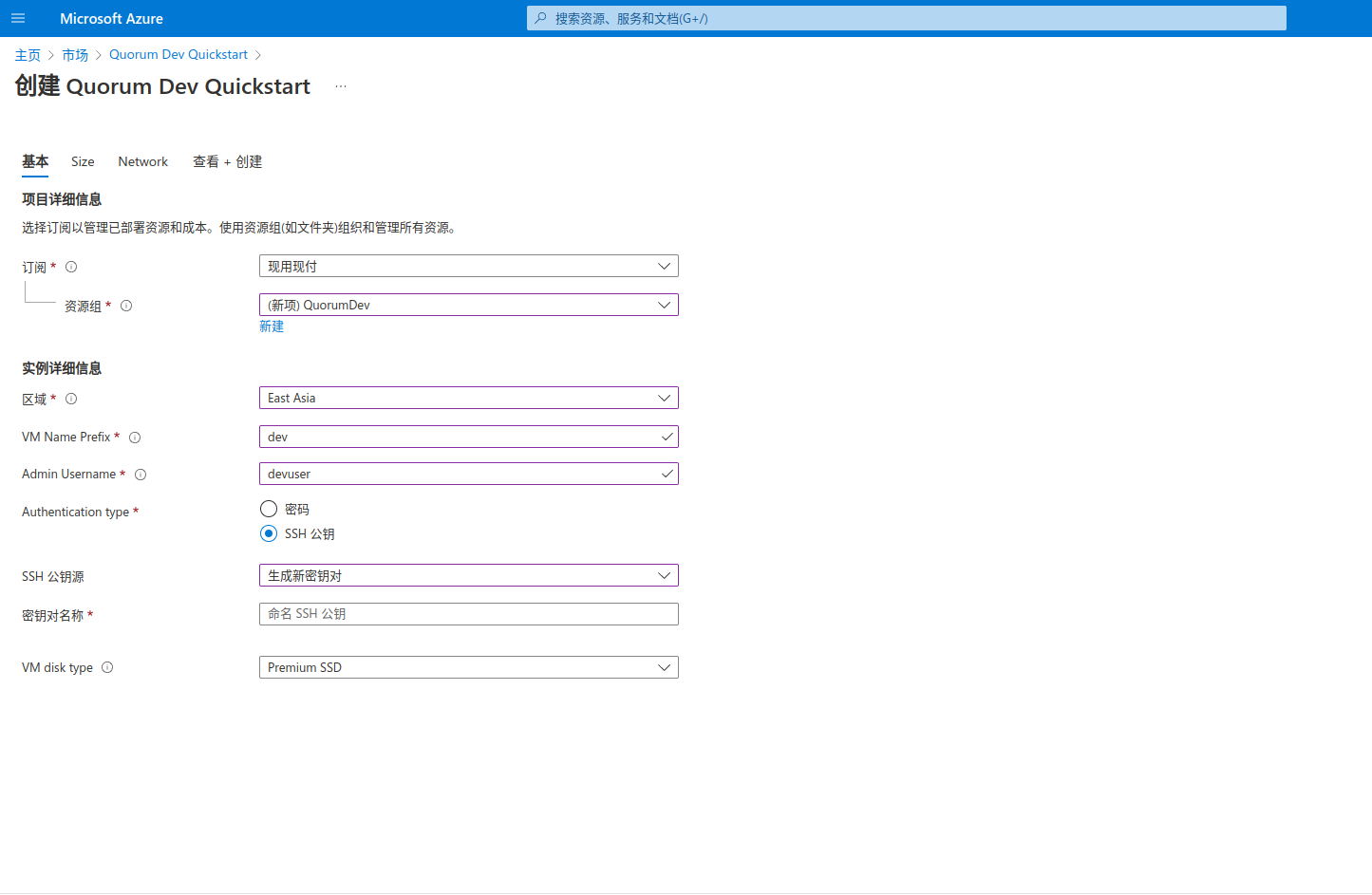

选择资源组、区域，填入管理员名称、密钥

Untitled

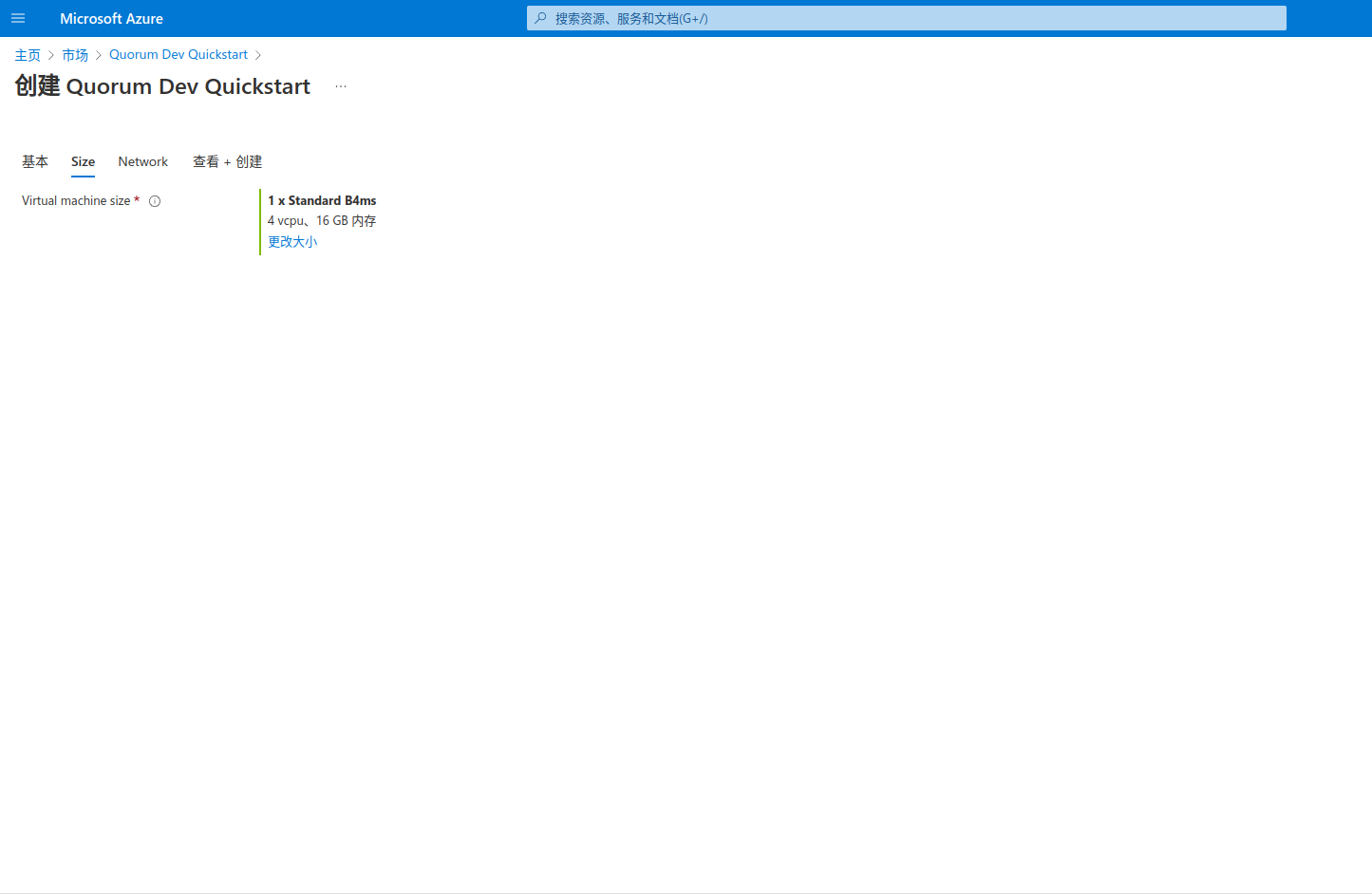

选择虚拟机规格大小

Untitled

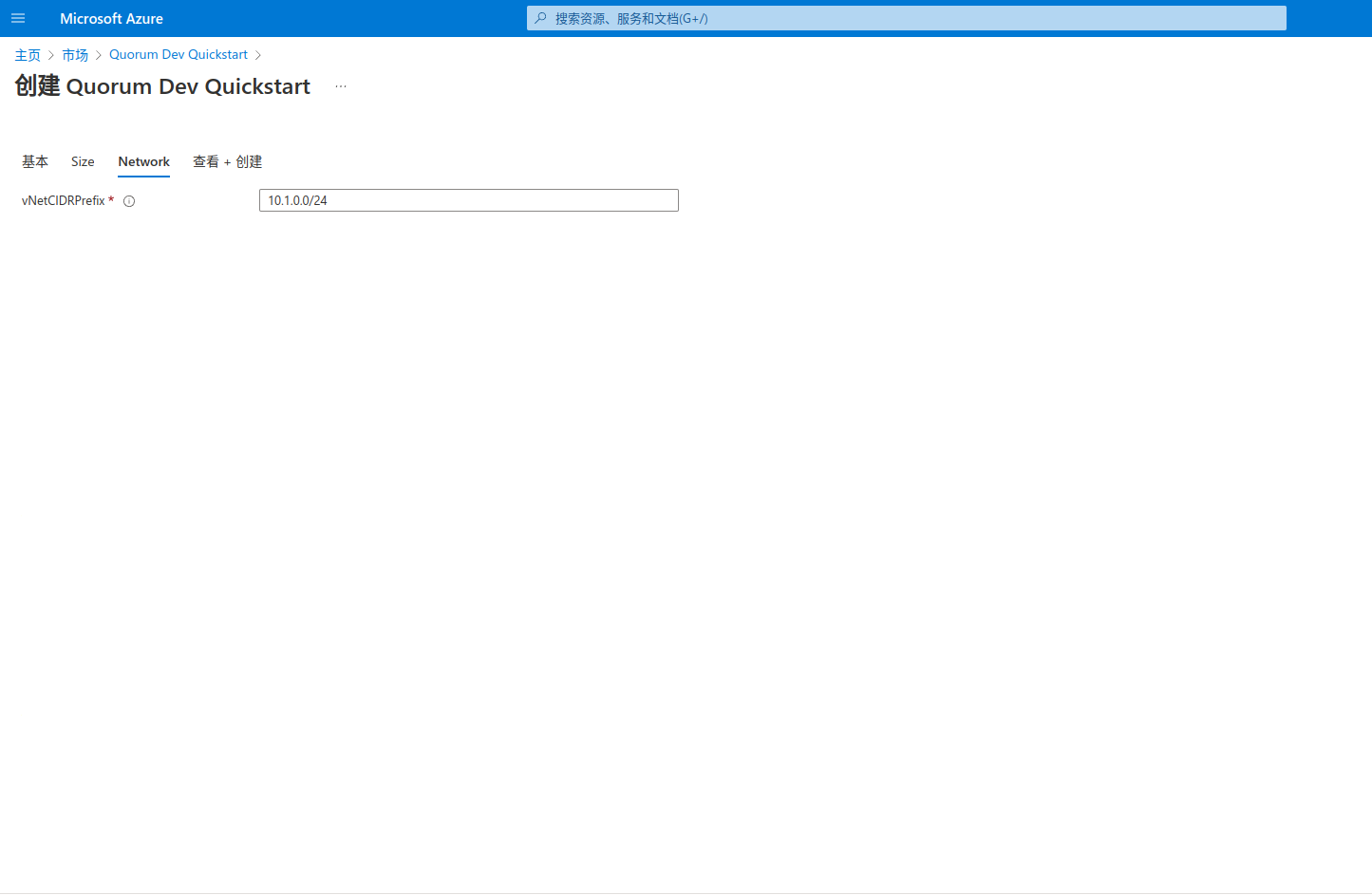

选择网络配置

Untitled

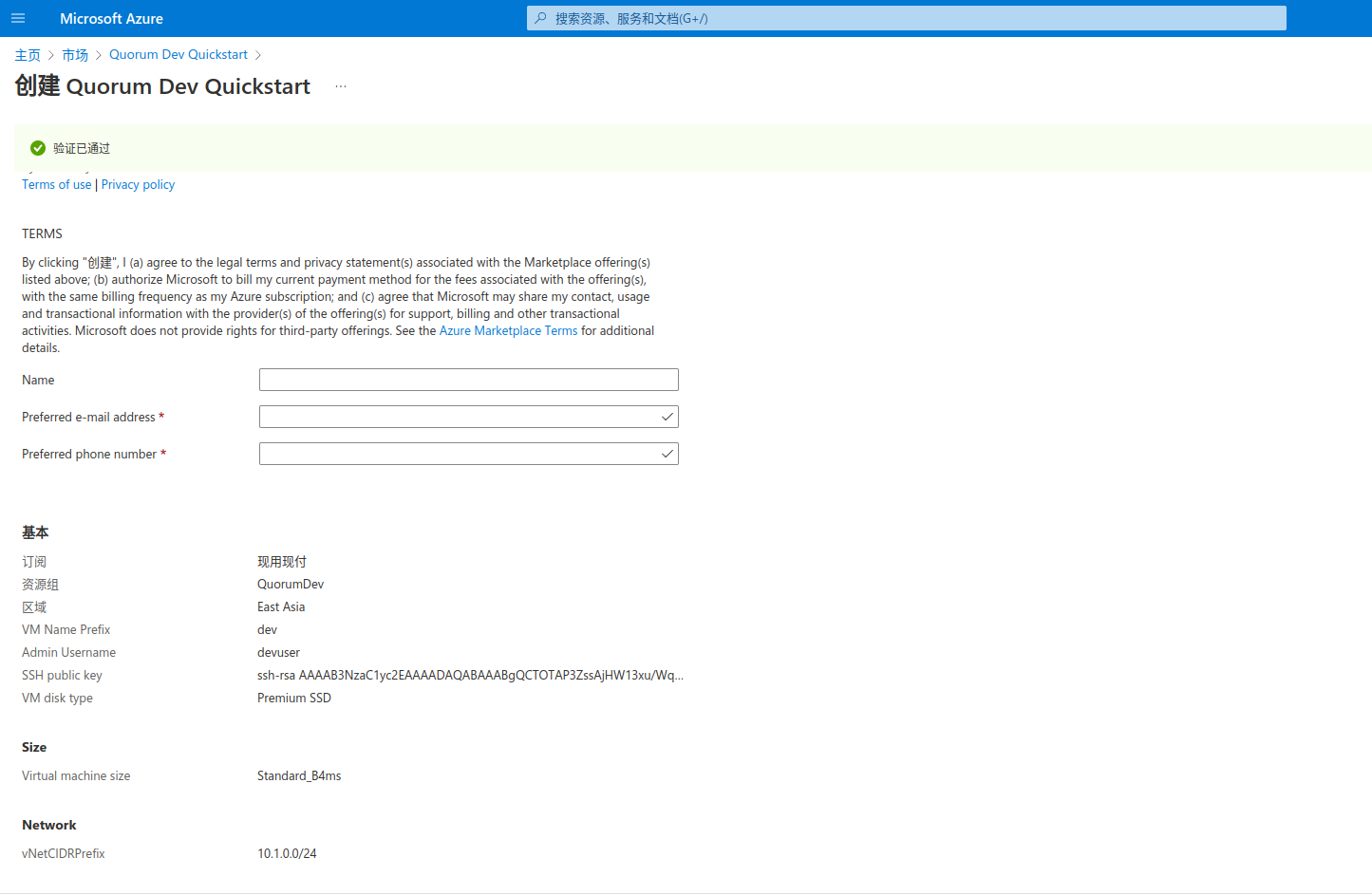

点击创建

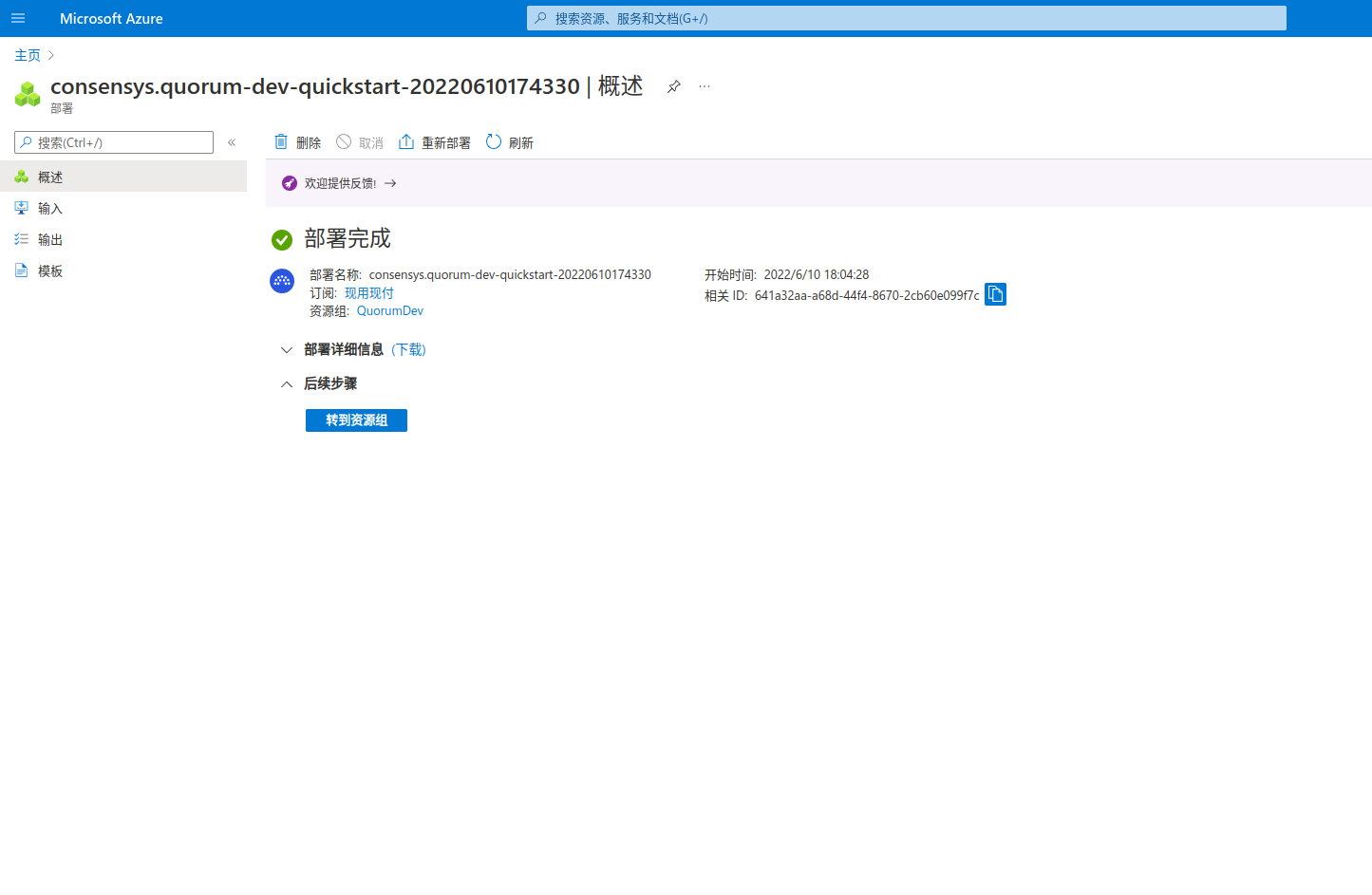

创建成功

Untitled

配置Quorum

通过SSH登录

1	ssh username@vmipaddress

运行run.sh，进入配置

./run.sh

选择2

1
2
3

Which Ethereum client would you like to run? Default: [1]
	1. Hyperledger Besu
	2. GoQuorum

选择N

1	Do you want to try out Codefi Orchestrate? [Y/n]

选择N

1	Do you want to try out Quorum Key Manager? [Y/n]

选择Y

1	Do you wish to enable support for private transactions? [Y/n]

选择1

Do you wish to enable support for logging with Splunk or ELK (Elasticsearch, Logstash & Kibana)? Default: [1]
	1. None
	2. Splunk
	3. ELK

选择N

1	Do you wish to enable support for monitoring your network with Blockscout? [N/y]

最后确认，并直接回车创建quorum-test-network目录

___
             / _ \   _   _    ___    _ __   _   _   _ __ ___
            | | | | | | | |  / _ \  | '__| | | | | | '_ ' _ \
            | |_| | | |_| | | (_) | | |    | |_| | | | | | | |
             \__\_\  \__,_|  \___/  |_|     \__,_| |_| |_| |_|

        ____                          _
       |  _ \    ___  __   __   ___  | |   ___    _ __     ___   _ __
       | | | |  / _ \ \ \ / /  / _ \ | |  / _ \  | '_ \   / _ \ | '__|
       | |_| | |  __/  \ V /  |  __/ | | | (_) | | |_) | |  __/ | |
       |____/   \___|   \_/    \___| |_|  \___/  | .__/   \___| |_|
                                                 |_|
       ___            _          _            _                    _
      / _ \   _   _  (_)   ___  | | __  ___  | |_    __ _   _ __  | |_
     | | | | | | | | | |  / __| | |/ / / __| | __|  / _' | | '__| | __|
     | |_| | | |_| | | | | (__  |   <  \__ \ | |_  | (_| | | |    | |_
      \__\_\  \__,_| |_|  \___| |_|\_\ |___/  \__|  \__,_| |_|     \__|

Welcome to the Quorum Developer Quickstart utility. This tool can be used
to rapidly generate local Quorum blockchain networks for development purposes
using tools like GoQuorum, Besu, and Codefi Orchestrate.

To get started, be sure that you have both Docker and Docker Compose
installed, then answer the following questions.

Which Ethereum client would you like to run? Default: [1]
	1. Hyperledger Besu
	2. GoQuorum
2
Do you want to try out Codefi Orchestrate? [Y/n]
n
Do you want to try out Quorum Key Manager? [Y/n]
n
Do you wish to enable support for private transactions? [Y/n]
y
Do you wish to enable support for logging with Splunk or ELK (Elasticsearch, Logstash & Kibana)? Default: [1]
	1. None
	2. Splunk
	3. ELK
1
Do you wish to enable support for monitoring your network with Blockscout? [N/y]
n
Where should we create the config files for this network? Please
choose either an empty directory, or a path to a new directory that does
not yet exist. Default: ./quorum-test-network

进入quorum-test-network目录

1	cd ./quorum-test-network

运行run.sh，等待运行结束

./run.sh

部署成功

Status: Downloaded newer image for grafana/grafana:latest
Creating quorum-test-network_validator4_1     ... done
Creating quorum-test-network_grafana_1        ... done
Creating quorum-test-network_member1tessera_1 ... done
Creating quorum-test-network_validator2_1     ... done
Creating quorum-test-network_validator3_1     ... done
Creating quorum-test-network_member3tessera_1 ... done
Creating quorum-test-network_prometheus_1     ... done
Creating rpcnode                              ... done
Creating quorum-test-network_validator1_1     ... done
Creating quorum-test-network_member2tessera_1 ... done
Creating quorum-test-network_member1quorum_1  ... done
Creating quorum-test-network_member2quorum_1  ... done
Creating quorum-test-network_member3quorum_1  ... done
Creating quorum-test-network_explorer_1       ... done
*************************************
Quorum Dev Quickstart
*************************************
----------------------------------
List endpoints and services
----------------------------------
JSON-RPC HTTP service endpoint                 : http://localhost:8545
JSON-RPC WebSocket service endpoint            : ws://localhost:8546
Web block explorer address                     : http://localhost:25000/explorer/nodes
Prometheus address                             : http://localhost:9090/graph
Grafana address                                : http://localhost:3000/d/a1lVy7ycin9Yv/goquorum-overview?orgId=1&refresh=10s&from=now-30m&to=now&var-system=All

For more information on the endpoints and services, refer to README.md in the installation directory.
****************************************************************

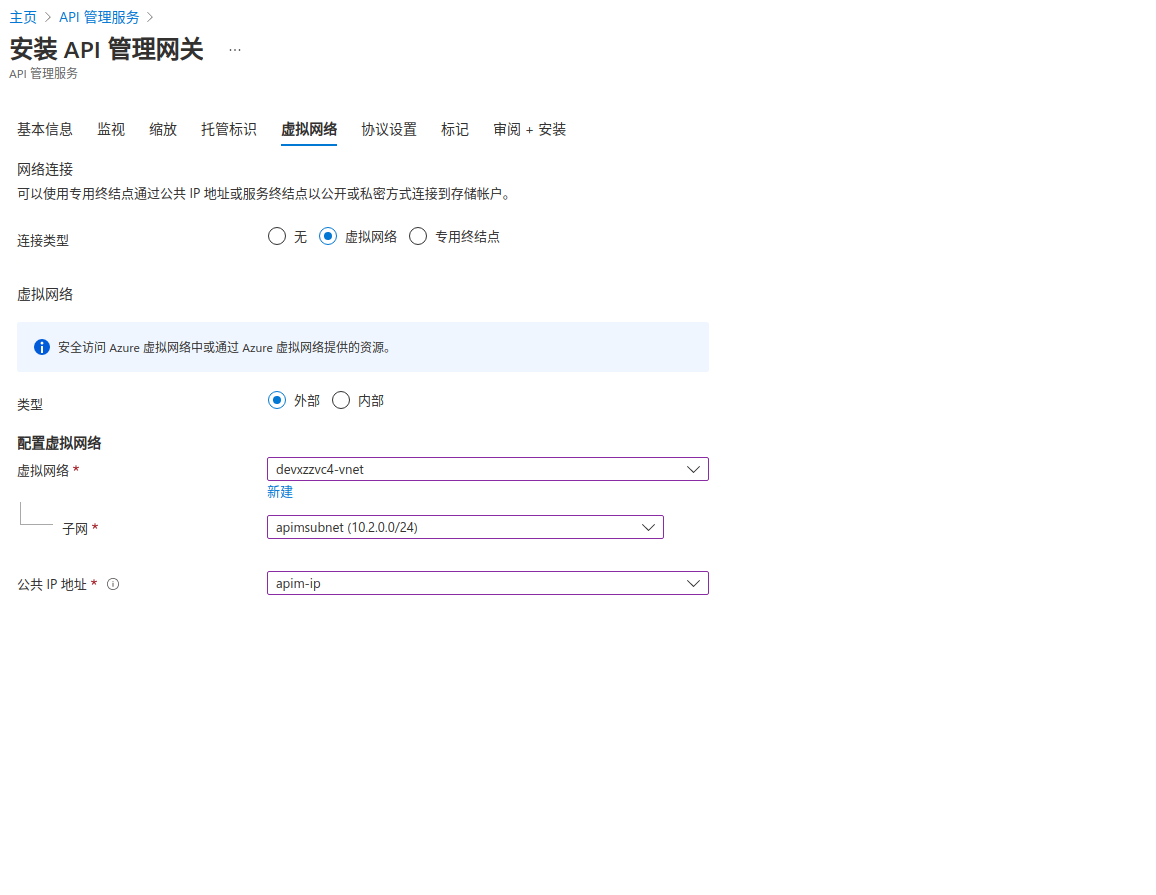

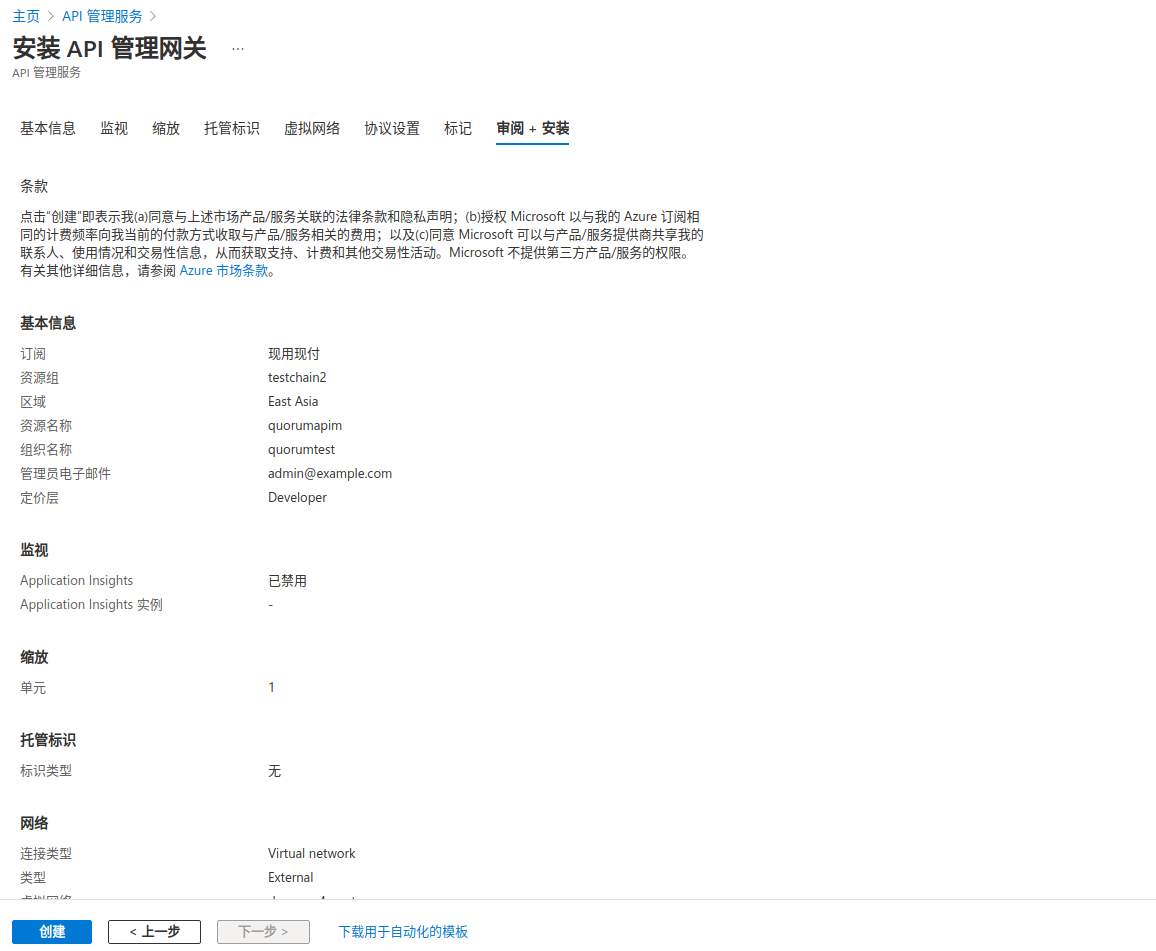

创建Azure API Management

当创建完Quorum VM之后，我们发现Quorum会暴露一些管理端口，但从安全角度考虑我们不能把这些端口直接暴露在公网上。另一方面，我们将来还希望通过移动设备的电子钱包（MetaMask）连接到这个测试环境，所以我们还需要通过HTTPS协议来访问JSON-RPC HTTP端口。这样我们就需要在Quorum VM的前端部署一个网关来管理和发布这些API。我们使用Azure API Management来实现这部分功能

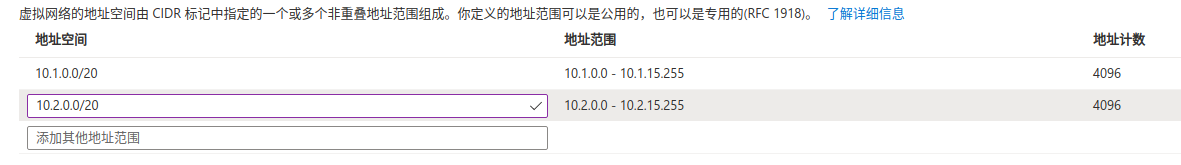

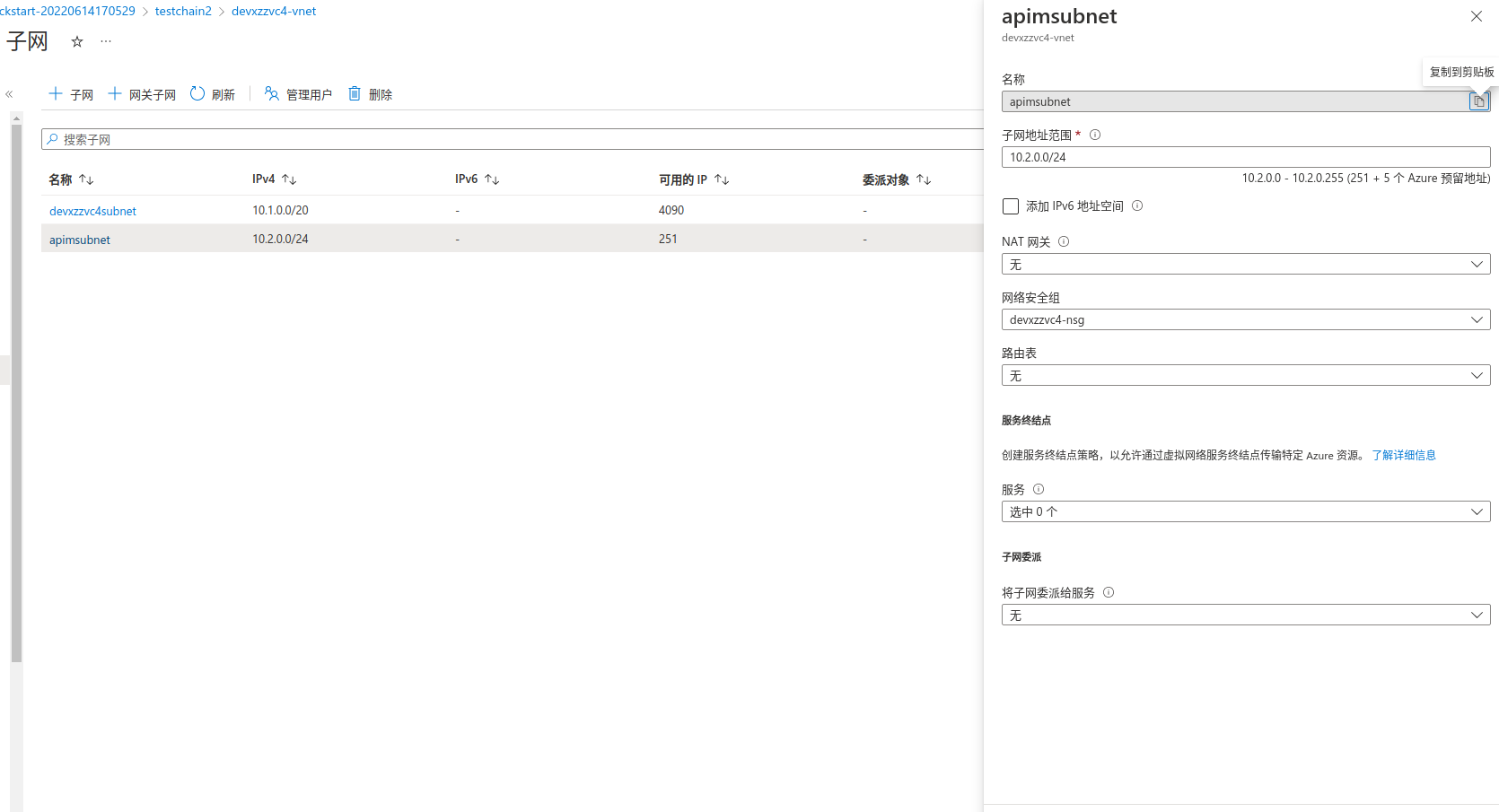

首先需要扩展Quorum VM的虚拟网络，增加一个地址空间

Untitled
